Charlotte, North Carolina

Covenant Presbyterian Church

Builder:        Aeolian-Skinner Organ Co., Inc.
   Year:        1949
   Opus:        1196

No. manuals:    4
No. stops:      81
No. ranks:      87
No. pipes:      5,229



                GREAT ORGAN                           SWELL ORGAN
            16' Quintaten             61          16' Lieblich Gedeckt      68
             8' Principal             61           8' Geigen Diapason       68
             8' Diapason              61           8' Stopped Diapason      68
             8' Bourdon               61           8' Viole de Gambe        68
             8' Spitzflöte            61           8' Viole Celeste         68
             4' Principal             61           8' Flauto Dolce          68
             4' Rohrflöte             61           8' Flute Celeste (TC)    56
         2 2/3' Quint                 61           8' Aeoline               68 a
             2' Super Octave          61           4' Prestant              68
            IV  Fourniture           244           4' Cor de Nuit           68
           III  Cymbal               183           2' Octavin               61
                Chimes                SO          IV  Scharf               244
             8' Hooded Trumpet        61 b        16' Fagotto               68
                                                   8' Trompette             68
                CHOIR ORGAN                        8' Hautbois              68
            16' Contre Gambe          68           8' Vox Humana            68
             8' Viola                 68           4' Clairon               68
             8' Rohrflöte             68              Tremulant
             8' Dulciana              68
             8' Unda Maris (TC)       56              SOLO/POSITIV ORGAN (IV)
             4' Prestant              68           8' Gamba                 68
             4' Koppelflöte           68           8' Gamba Celeste         68
             2' Blockflöte            61           4' Orchestral Flute      68
            II  Sesquialtera         122           8' French Horn           68
            16' English Horn          68           8' Trompette Harmonique  68
             8' Cromorne              68           4' Clairon Harmonique    68
             4' Rohrschalmei          68              Tremulant
                Tremulant                             Chimes
                                                      Positiv unenclosed:
                ANTIPHONAL ORGAN (Op. 1196-B)      8' Nason Flute           61
             8' Gedeckt Pommer        61           4' Nachthorn             61
             4' Prestant              61           2' Principal             61
         2 2/3' Rohrnasat             61       1 3/5' Tierce                61
             2' Blockflöte            61       1 1/3' Larigot               61
            IV  Fourniture           244           1' Oktav                 61 a
                enclosed:                        III  Zimbel               183
             8' Gemshorn              61
             8' Schwebung (TC)        49              PEDAL ORGAN
             4' Spillflöte            61          32' Resultant Bass        --
                Tremulant                         16' Contre Basse          32
                                                  16' Bourdon               32
                ANTIPHONAL PEDAL (Op. 1196-B)     16' Quintaten             GT
            16' Bourdon               12 ANT      16' Gambe                 CH
                                                  16' Lieblich Gedeckt      SW
                                                   8' Principal             32
                                                   8' Stopped Flute         12
                                                   8' Gambe                 CH
                                                   8' Still Gedeckt         SW
                                                   4' Choral Bass           32
                                                   4' Nachthorn             32
                                                   2' Blockflöte            32
                                                  IV  Mixture              128
                                                  32' Contra Fagotto        12 SW
                                                  16' Bombarde              32
                                                   8' Trompette             12
             a  Added as 1196-A, 1954              4' Clairon               12
             b  Added as 1196-B, 1962                 Chimes                SO

Source: Allen Kinzey

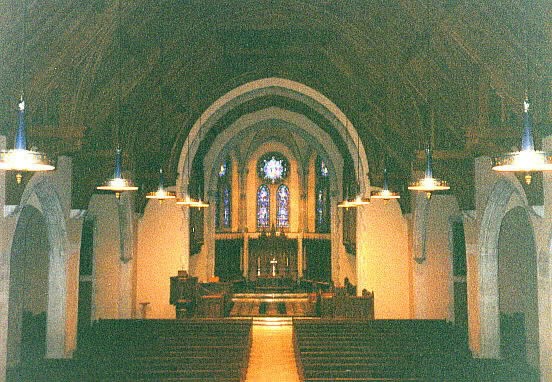

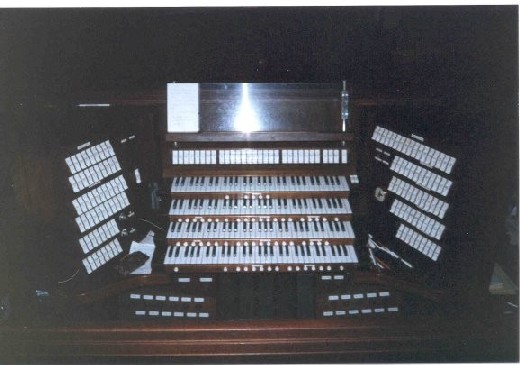

Photo 5 & 6 Source: Jeff Scofield

Organ Historical Society Database: https://pipeorgandatabase.org/OrganDetails.php?OrganID=34810
