New Haven, Connecticut

Trinity Church-on-the Green, Episcopal

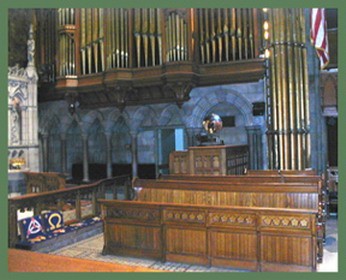

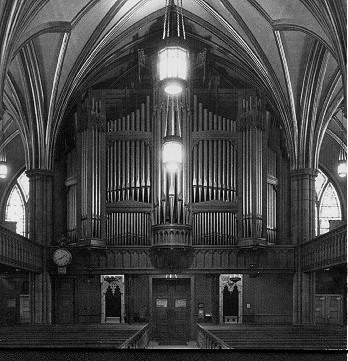

Aeolian-Skinner organ, Op. 927 (1935) in Trinity Church-on-the-Green, Episcopal (New Haven, CT)

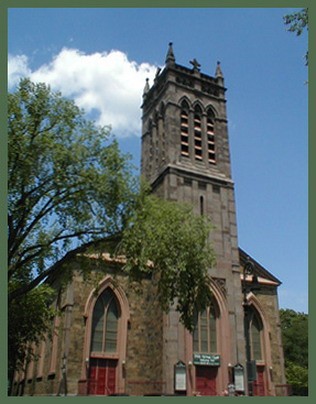

Trinity Church-on-the-Green, Episcopal (New Haven, CT)

Aeolian-Skinner organ, Op. 927 (1935) in Trinity Church-on-the-Green, Episcopal (New Haven, CT)

Aeolian-Skinner organ, Op. 927 (1935) in Trinity Church-on-the-Green, Episcopal (New Haven, CT)

Aeolian-Skinner organ, Op. 927 (1935) in Trinity Church-on-the-Green, Episcopal (New Haven, CT)

Builder:        Aeolian-Skinner Organ Co., Inc.
   Year:        1935
   Opus:        927

No. manuals:    3
No. stops:      68
No. ranks:      70
No. pipes:      4,215

Specification

             GREAT ORGAN                              SWELL ORGAN
         16' Sub Principal       61               16' Lieblich Gedeckt    73
          8' Principal           61                8' Geigen Principal    73
          8' Diapason            61                8' Stopped Diapason    73
          8' Bourdon             61                8' Viol de Gambe       73
          8' Gemshorn            61                8' Voix Celeste        73
          4' Octave              61                8' Flute Celeste      134
          4' Gemshorn            61                4' Octave Geigen       73
      2 2/3' Quint               61                4' Flute Harmonique    73
          2' Super Octave        61                2' Fifteenth           61
      1 3/5' Tierce              61               VI  Plein Jeu          366
         IV  Fourniture         244               16' Bombarde            73
          8' Trumpet             61                8' Trompette           73
          4' Clarion             61                8' Oboe                73
             Chimes (enc. in CH)                   8' Vox Humana          73
                                                      Tremolo
             CHOIR ORGAN
         16' Contra Gemshorn     73                   PEDAL ORGAN
          8' Spitzflöte          73               32' Soubasse            12
          8' Lieblich Gedeckt    73               16' Principal           32
          8' Dulciana            73               16' Sub Principal       GT
          8' Unda Maris (TA)     64               16' Bourdon             32
          4' Gemshorn            73               16' Violone             32
          4' Lieblich Flöte      73               16' Contra Gemshorn     CH
      2 2/3' Nazard              61               16' Lieblich Gedeckt    SW
          2' Piccolo             61                8' Octave              32
      1 3/5' Tierce              61                8' Flute Ouverte       32
          V  Sesquialtera        pf                8' Gemshorn            CH
          8' Trompette           73                8' Still Gedeckt       SW
          8' English Horn        73            5 1/3' Quint               32
          8' Clarinet            73                4' Super Octave        32
             Tremolo                               4' Flute Harmonique    32
                                                   2' Blockflöte          pf
                                                  IV  Mixture             pf
                                                  16' Bombarde            32
                                                   8' Trompette           32
                                                   4' Clarion             32
                                                      Chimes              GT

                              CHANCEL ORGAN (Opus 927-A)

             GREAT ORGAN                              CHOIR ORGAN
          8' Rohrflöte           61                8' Stopped Diapason    61
          8' Erzähler            61                8' Salicional          61
          4' Octave              61                4' Prestant            61
          2' Fifteenth (fr. Fourniture)          III  Mixture            183
         IV  Fourniture         244                8' Trompette           61
          8' Trumpet             61                   Tremolo

             PEDAL ORGAN
         16' Bourdon             12 CH
          8' Principal           12
          8' Viola               CH
          4' Choralbass          12
         16' Fagotto             32


Source: Allen Kinzey

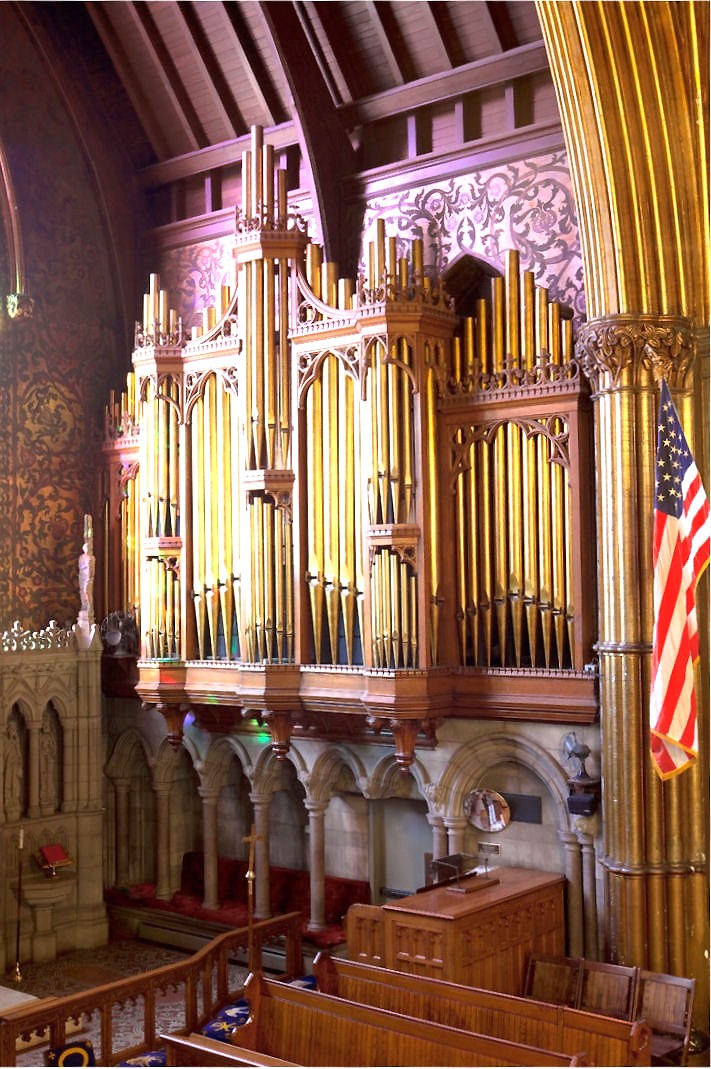

Photos 5-6 Source: Len Levasseur

Notes: The organ was installed in 1935, replacing a 1904 Hall organ and retaining the casework, as well as the 16' Open Diapason that was converted into the 32' Soubasse. The Chancel Organ was rebuilt in 1948 as Op. 927-A. Additions were made in 1957 and 1962, with two additions from Op. 851 added in 1972-75 by A. Thompson-Allen Co. Two stops in Chancel Choir  were replaced with ranks from Op. 464. Restoration work was done by A. Thompson Allen 1993-94.

Organ Historical Society Database: https://pipeorgandatabase.org/OrganDetails.php?OrganID=7389
