New York City, New York
Brick Presbyterian Church
.jpg) |
.jpg) |
.jpg){kind=link}
Builder: The Ernest M. Skinner Co. Year: 1917 Opus: 280 No. manuals: 4 No. stops: 120 No. ranks: 87 No. pipes: 5,935
GREAT ORGAN SWELL ORGAN
16' Diapason 61 16' Bourdon 73
8' First Diapason 61 8' First Diapason 73
8' Second Diapason 61 8' Second Diapason 73
8' Third Diapason CH 8' Clarabella 73
8' Stentorphone SO 8' Gedeckt 73
8' Philomela SO 8' Salicional 73
8' Grossflote 61 8' Viole d'Orchestre 73
8' Erzähler 61 8' Voix Celeste 73
8' Orchestral Strings -- 8' Orchestral Strings --
8' Gamba 61 8' Viole d'Amour 73
8' Concert Flute CH 8' Unda Maris 73
8' Flute Celeste CH 8' Spitzflöte 73
8' Dulciana CH 8' Flute Celeste 73
4' Octave 61 4' Octave 73
4' Flute Harmonique 61 4' Flute Harmonique 73
IV Mixture 244 2' Piccolo Harmonique 61
16' Ophicleide SO IV Mixture 244
8' Tuba SO 16' Contra Posaune 73
4' Clarion SO 8' Cornopean 73
8' Harp CH 8' Oboe 73
4' Celesta CH 8' Vox Humana (sep box) 61
4' Clarion 73
CHOIR ORGAN Tremolo
16' Contra Gamba 73
8' Diapason 73 SOLO ORGAN
8' Concert Flute 73 8' Stentorphone 73
8' Flute Celeste 73 8' Philomela 17 PED
8' Quintadena 73 8' Gamba 73
8' Dulcet II 146 8' Gamba Celeste 73
8' Dulciana 73 8' Orchestral Strings --
8' Orchestral Strings -- 4' Solo Flute 73
8' Kleine Erzähler II 146 III Mixture 183
4' Flute d'Amour 73 8' Tuba Mirabilis 73
2 2/3' Nazard 61 8' Tuba 73
2' Piccolo 61 8' Trumpet 73
16' Fagotto 73 8' French Horn 73
8' Clarinet 73 8' English Horn 73
8' Flugel Horn 73 8' Musette 73
8' English Horn SO 8' Orchestral Oboe 73
8' Orchestral Oboe SO 4' Clarion 73
8' French Horn SO Tremolo
8' Tuba Mirabilis SO
Tremolo SOLO ECHO ORGAN
8' Harp (TC) -- 16' Bourdon 61
4' Celesta 49 bars 8' Gedeckt 61
8' Vox Angelica II 122
CHOIR ECHO ORGAN 4' Chimney Flute 61
8' Gedeckt -- III Mixture 183
8' Vox Angelica II -- 8' Flugel Horn 73
4' Chimney Flute -- 8' Vox Humana 61
III Mixture -- Tremolo
8' Flugel Horn -- Chimes 27 tubes
8' Vox Humana -- 16' Pedal Bourdon EC
Chimes
16' Pedal Bourdon -- PEDAL ORGAN
32' Bourdon 32
ORCHESTRAL STRINGS 32' Resultant --
8' Gross Gamba 73 16' Diapason I 32
8' Gamba Celeste 73 16' Diapason II GT
8' Viole d'Orchestre 73 16' Bourdon 12
8' Viole Celeste 73 16' Violone 32
8' Vox Humana 73 16' Echo Bourdon 32
Tremolo 16' Lieblich Gedeckt SW
Chimes 16' Gamba CH
8' Octave 12
8' Gedeckt 12
8' Still Gedeckt SW
8' Cello SW
8' Gamba CH
4' Flute 12
32' Bombarde 32
16' Trombone 12
16' Contra Posaune SW
16' Fagotto CH
8' Tromba 12
8' Tuba SO
4' Clarion SO
Chimes EC
Source: Allen Kinzey

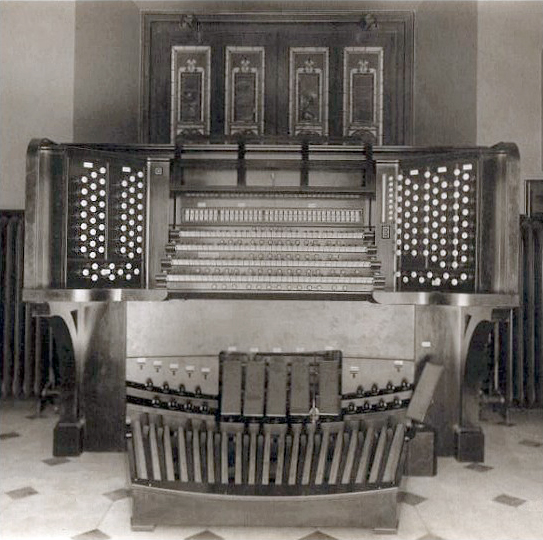

Photo #1 Source: Brick Church archives, via Steve Lawson. Note the Master Swell pedal to the extreme right of the pedalboard.
Photo #2 Source: The Diapason, via Jonathan Bowen.
Notes: The Orchestral Strings is a separate string organ of five ranks of various scales and voicing tuned as a large celeste and in its own box, which is controlled automatically by the swell shoe of the manual on which the strings are drawn. If drawn on two or more manuals at the same time, the Swell Organ shoe will control this box The tremolo of each manual will control its tremolo.
The American Organist (November 1918) further stated that "wind is supplied by a 50 hp Orgoblo."
Organ Historical Society Database: https://pipeorgandatabase.org/OrganDetails.php?OrganID=22376
